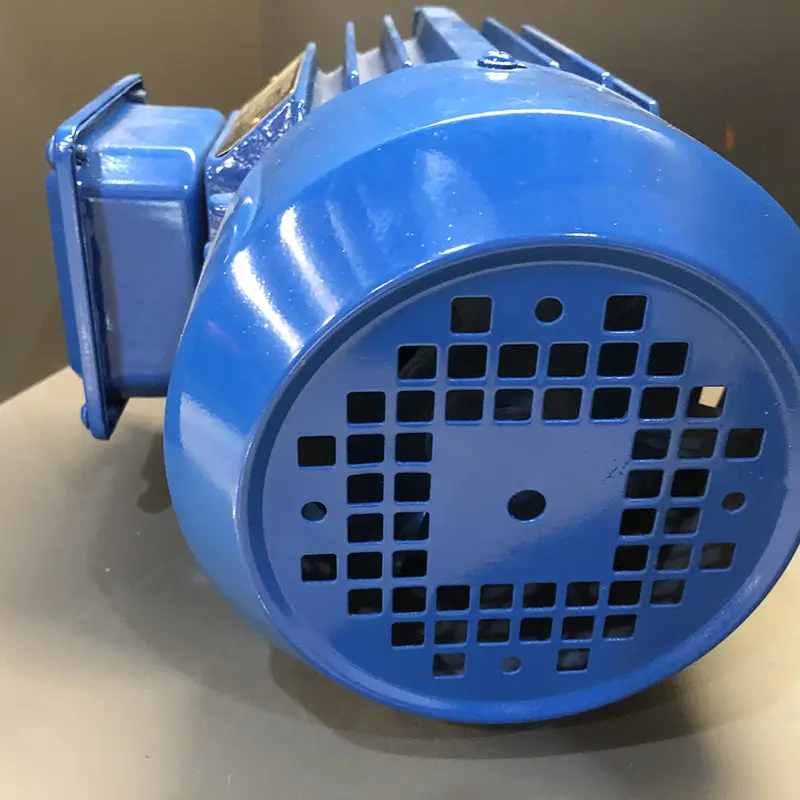

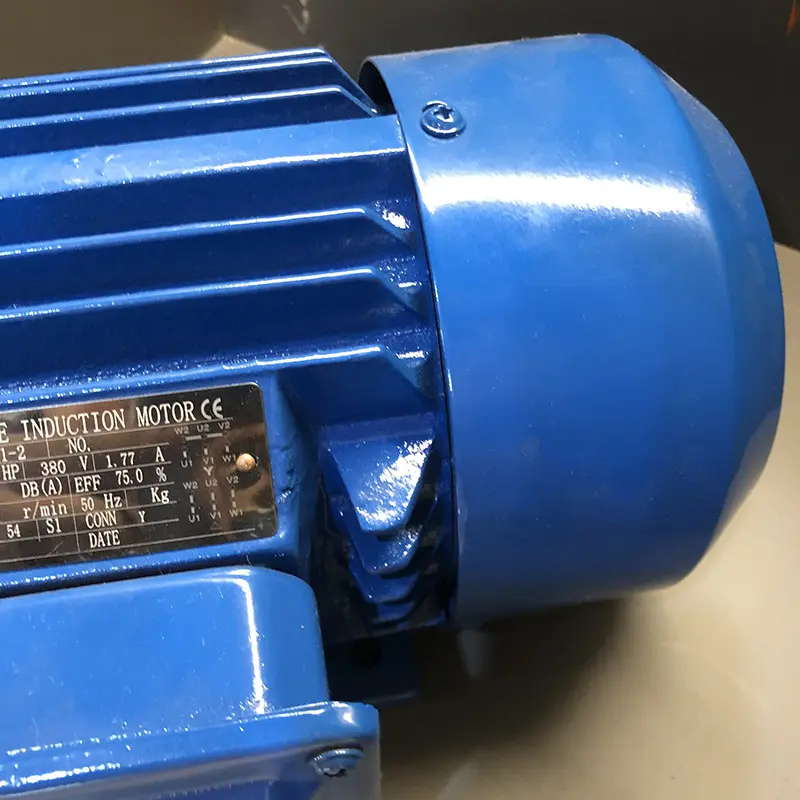

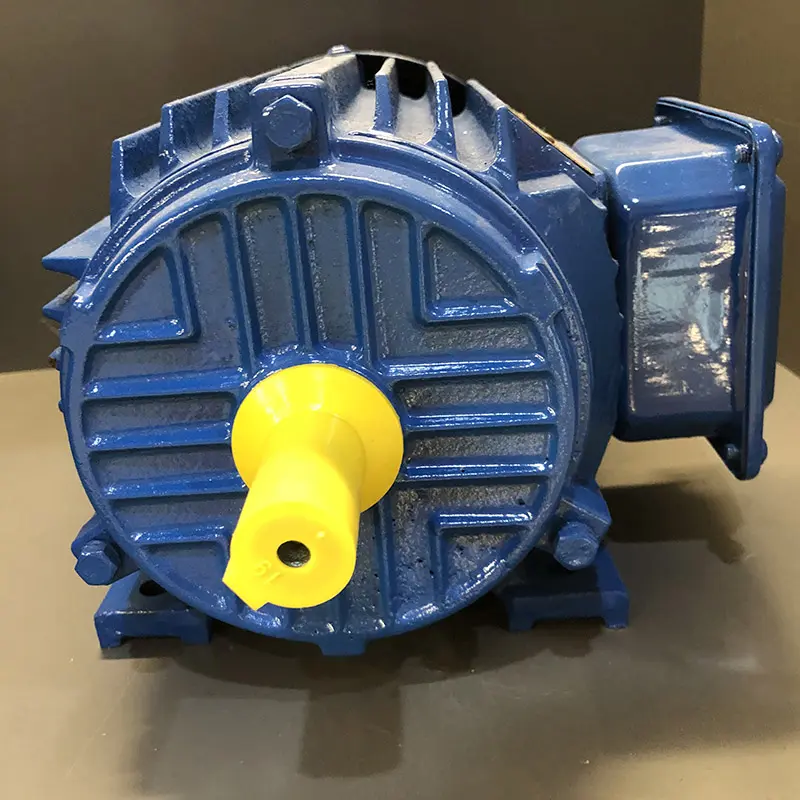

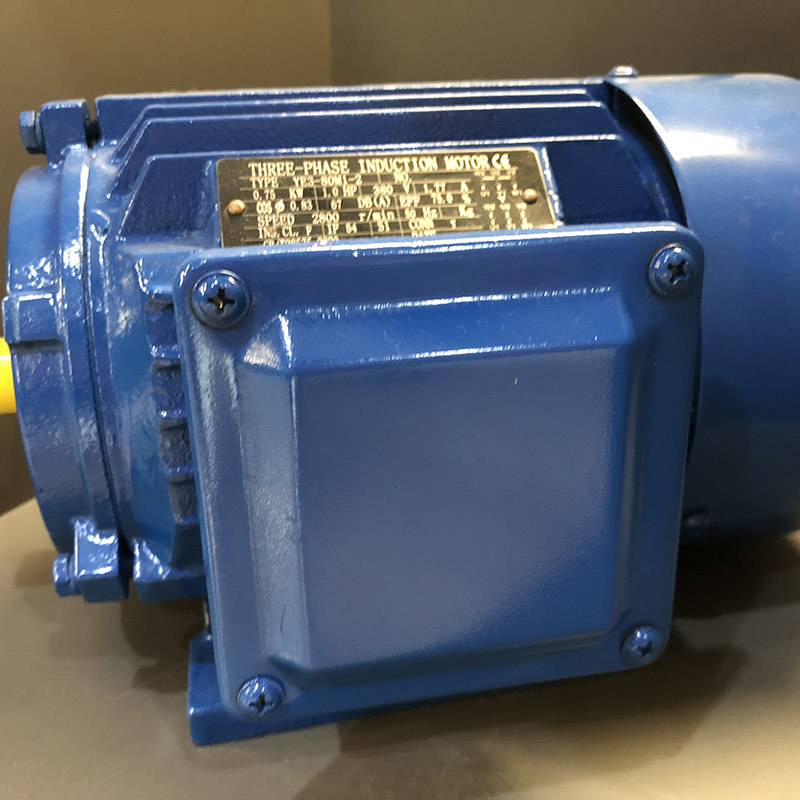

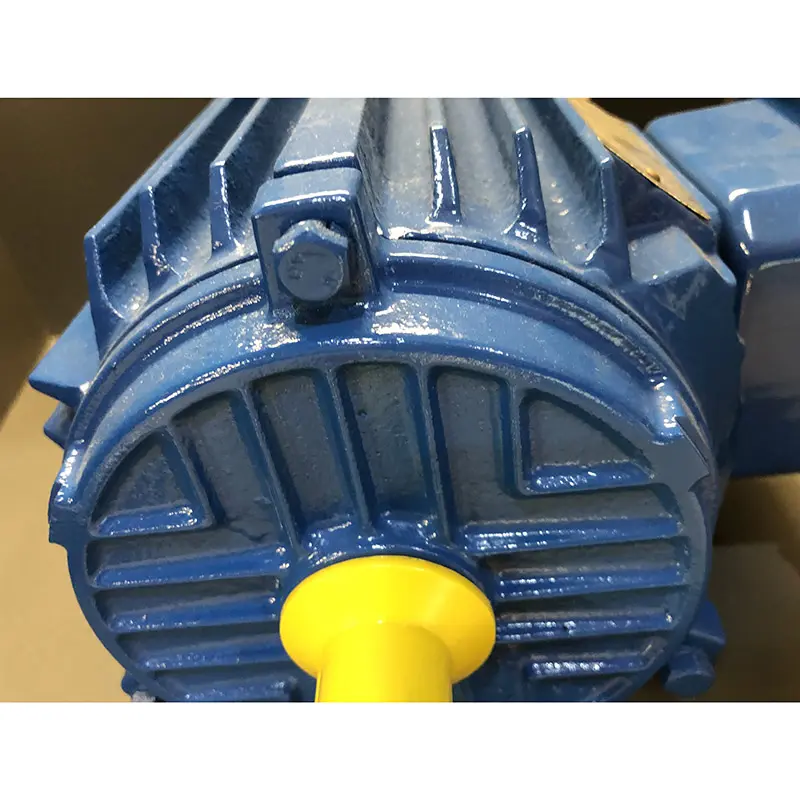

0.55KW 3-Phase 380V Alumium/Cast Iron Housing Electric Motor IE2 Energy-saving
High Efficiency Three Phase Asynchronous Motor
Product Description
This advanced motor series presents two robust construction options: traditional cast iron housings for cost-sensitive industrial users and lightweight aluminum versions for premium performance applications. The cast iron units (80-355 frame) deliver unbeaten durability with Brinell hardness exceeding 160HB, while aluminum models (80-132 frame) achieve 40% better heat dissipation and 25% lower acoustic emissions.
Certified to both Chinese GB18613-2012 Level 3 and international IE2 efficiency standards, these motors incorporate several energy-optimized technologies:
Optimized slot design reduces copper losses by 18%
High-efficiency cooling fins (aluminum version)
Low-friction bearings with extended service intervals
Precision-machined air gaps for improved power factor
The motors' technical superiority makes them particularly suitable for:
Water circulation systems in commercial buildings
Pneumatic tools and compressor drives
Plastic injection molding equipment
Packaging and printing machinery
Food processing conveyor systems
Key operational advantages include:
Vibration levels below 2.8mm/s (aluminum)
15% wider speed regulation range
Optional PTC thermistors for thermal protection
B35/B5/B14 mounting configurations
Neither variant is approved for explosive atmospheres or chemical exposure. The cast iron series offers complete size coverage for replacement applications, while the aluminum range provides the ideal solution for noise-sensitive environments like hospitals or laboratories. Both options deliver exceptional lifecycle value with maintenance intervals exceeding 20,000 operational hours.
Operating conditions
Ambient air temperature: -15℃≤θ≤40℃
Altitude:≤1000m
Rated frequency: 50Hz/60Hz
Wiring method: Y wiring method for ≤3kw
△wiring method for ≥4kw
Working type: S1 (continuous working system)
Insulation class: F
Protection grade: IP54 or IP55
Cooling type: IC411
Specification
| Model number | Voltage(V) | Frequency（HZ） | Rated power(KW) | Rated current(A) | Rotational speed(r/min) |
| YC90S-4 | 220 | 50 | 0.55 | 4 | 1400 |
| YE3-80M1-2 | 380 | 50 | 0.55 | 1.77 | 2800 |
| YE3-80M2-4 | 380 | 50 | 0.75 | 2.05 | 1400 |
FAQs
1.Q:Are you a manufactory or trading company?
We are Manufacture and trading company.Taizhou yide pumps Co.,ltd. dedicated to develop and manufacture safe and efficient pump.
2.Q : What's the payment term?
A: We accept T/T, L/C,, etc.
3.Q : What's the packaging standard?
A: The packaging is divided into wooden and carton packaging, depending on the power range. Some products in the lower power range have a secondary carton packaging.
4.Q: Do you buy back old pumps for recycling?
A: Currently no, but we guide proper disposal methods.
