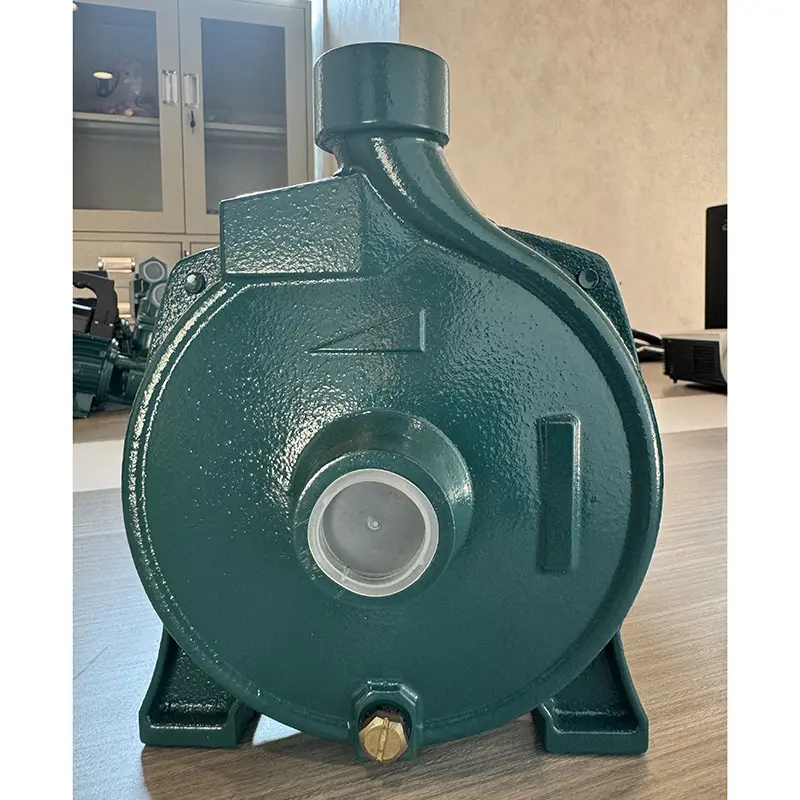

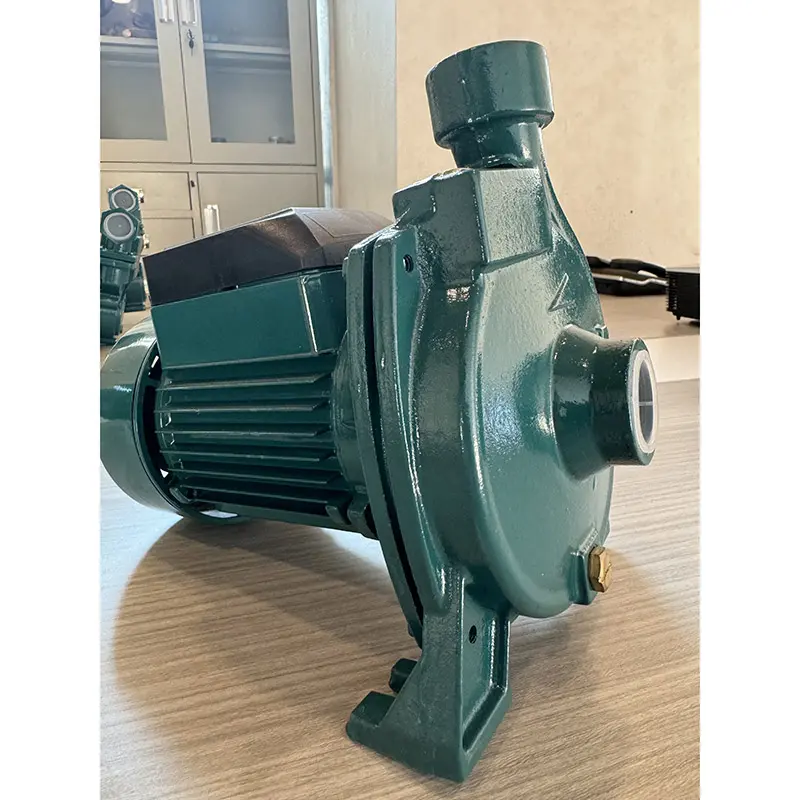

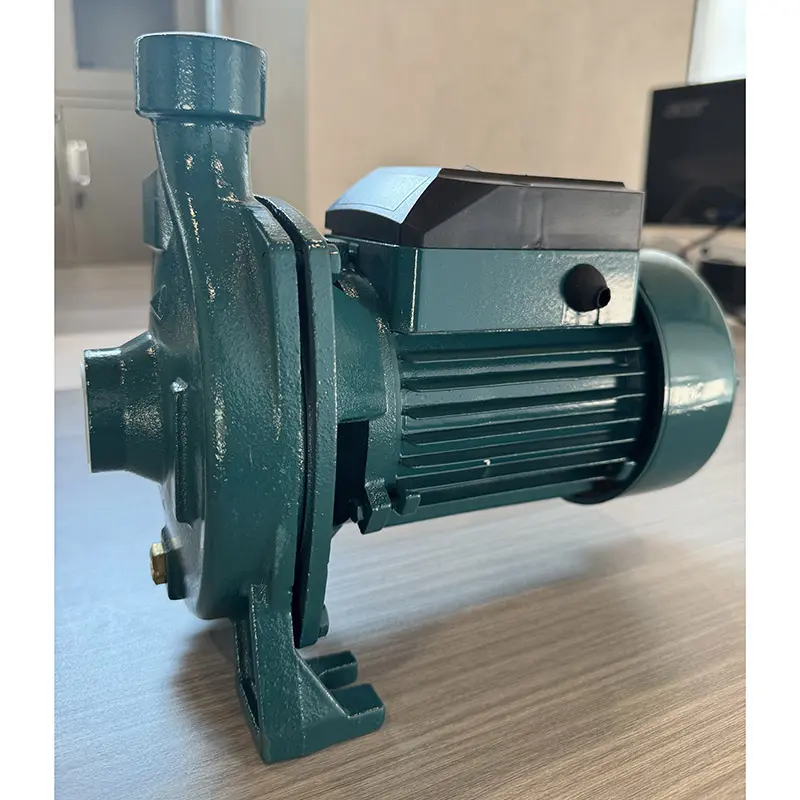

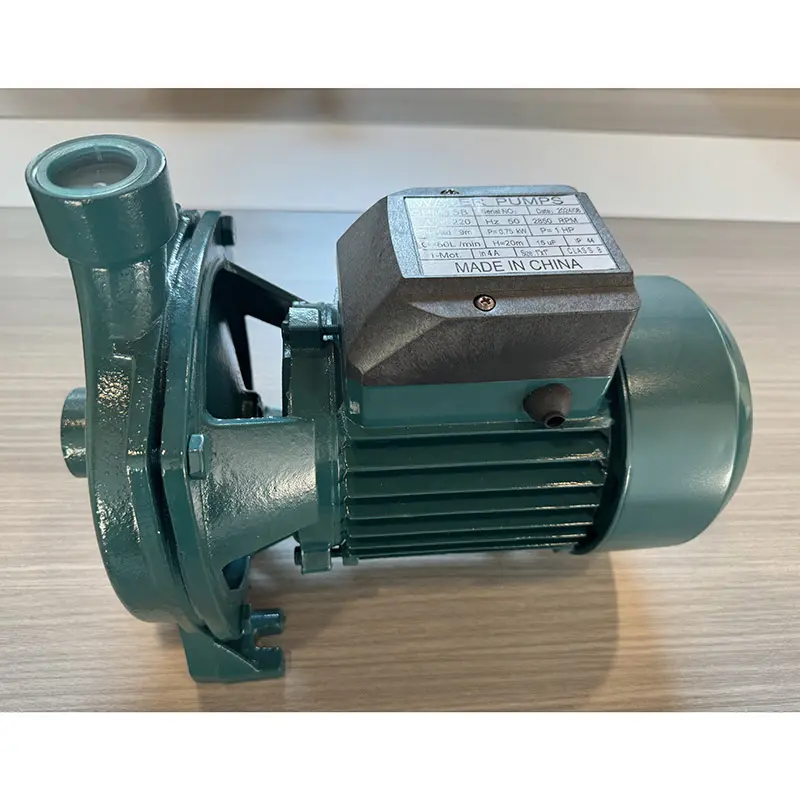

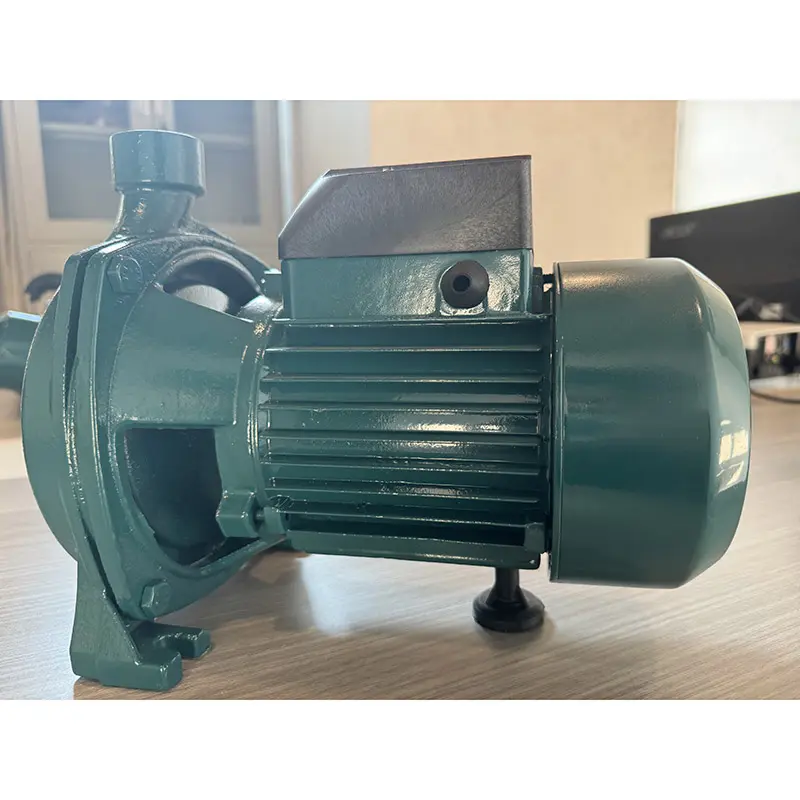

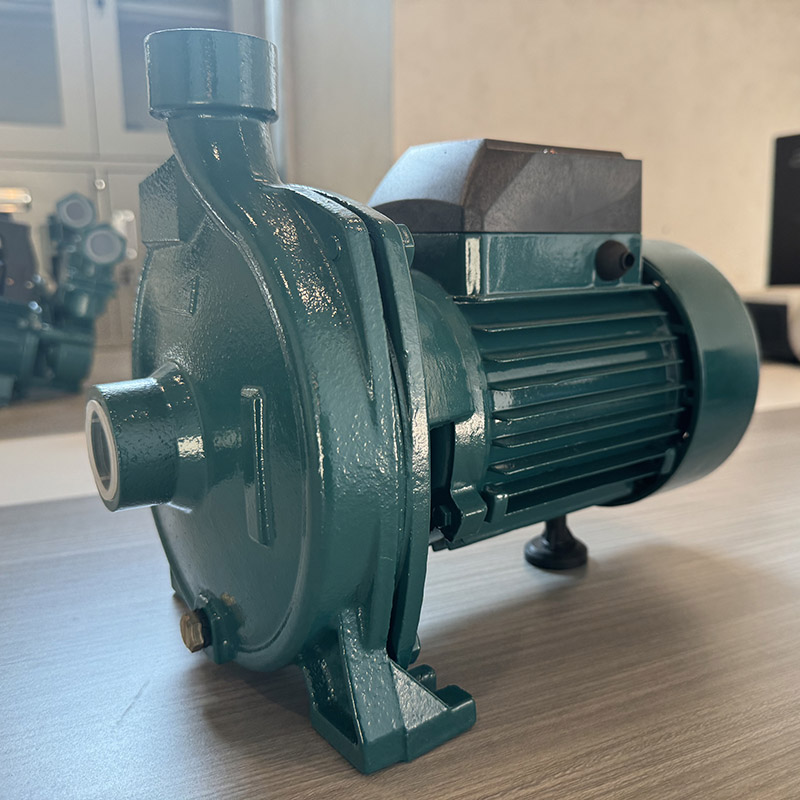

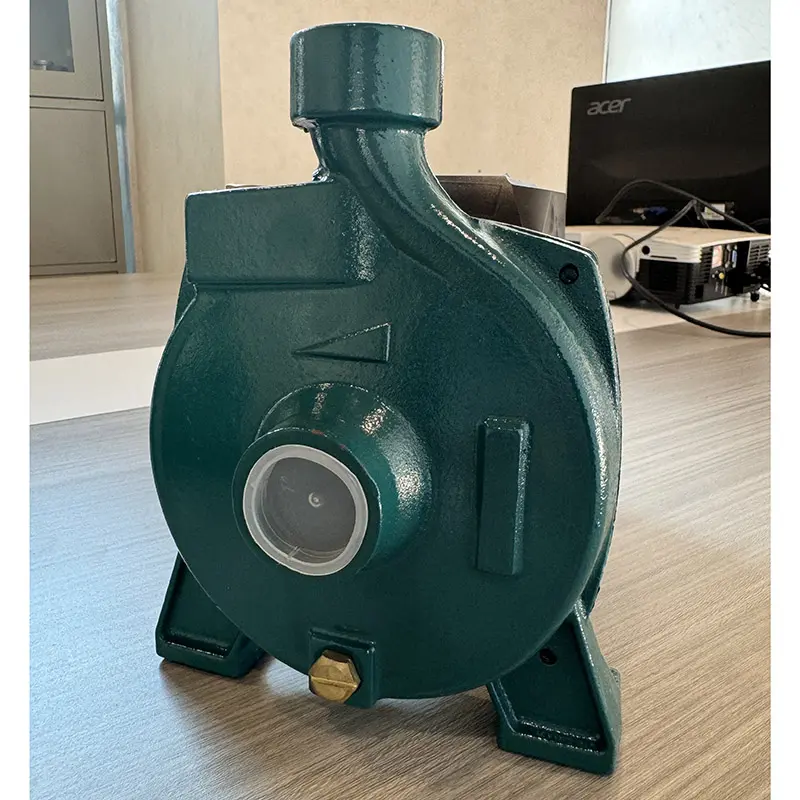

0.5HP Electric Centrifugal Pump for Industrial Water Treatment Applications 0.75kw Cast iron
Product Description
Designed for adaptability, the CDL/CDLF series supports the transfer of multiple liquid types, accommodating differences in temperature, pressure, and flow demands. The CDL pump serves non-corrosive applications, whereas the CDLF model is tailored for slightly corrosive conditions, enhancing its utility.
Water supply: Water filter and transport in Waterworks, boosting of main pipeline, boosting in high-rise buildings.
Industrial boosting: Process flow water system, cleaning system, high-pressure washing system, fire fighting system.
Industrial liquid conveying: Cooling and air-conditioning system, boiler water supply and condensing system,.machine-associated purpose, acids and alkali.
Water treatment: Ultrafiltration system, reverse osmosis system, istillation system, separator, swimming pool.
Irrigation: Farmland irgation, spray irrigation, dripping irrigation.
Thin, clean, non-flammable and non-explosive liquidcontaining no solid granules and fibers.
Liquid temperature:
Normal temperature type: -l5C ~+70′C,
Hot water type:-15C~+120C
Ambient temperature: up to +40C.
Altitude:up to 1000m
Full-enclosed air -blast two-pole standard motor
Protection class: 1P55
Insulation class: F
Standard voltage:50Hz: 1 x 220-230/ 240V
3 x 200-220/ 346-380V
3 x 220-240/ 380-415V
3 x 380-415V
Centrifugal Pumps
Application
Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
As a result of their reliability and the fact that they are easy to use, these pumps are widely used in domestic and civil applications such as the distribution of water in combination with small and medium sized pressure sets, for transferring liquids and for the irrigation of gardens and allotments. The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
Motor
※ Two-pole induction motor(n=2850 r.p.m)
※ Insulation Class B
※ Protection IP44
※ Continuous service S1
※ Thermal protector for single phase
※ Single-phase 220V/50Hz, 60Hz if request
Three-phase 380V/50Hz, 60Hz if request
Operating conditions
※ Liquid temperature up to 60℃
※ Ambient temperature up to 40℃
※ Total suction lift up to 8m
ComponentConstruction
※ Pump body:
※ Pump support:
※ Motor housing:
※ Impeller:
※ Motor shaft:
※ Mechanical seal:Cast iron
Cast iron
Aluminum
Brass
Carbon steel, AISI304 SS if request
Ceramic/Graphite (0.5HP), SIC/Graphite
Specification
| Model number | Voltage(V) | Frequency（HZ） | Rated power(KW) | Maximum discharge(m3/h) | Maximum lift(m) | Rated current(A) | Maximum suction(m) | Caliber(mm) | Rotational speed(r/min) |
| CPM130 | 220 | 50 | 0.37 | 4.2 | 14 | 2 | 9 | 25 | 2850 |
| CPM158 | 220 | 50 | 0.75 | 4.8 | 20 | 4 | 9 | 25 | 2850 |
| CPM180 | 220 | 50 | 1.5 | 7.8 | 28 | 7 | 9 | 30*25 | 2850 |
| HFM/5AM | 220 | 50 | 1.5 | 30 | 18 | 7 | 9 | 50 | 2850 |
| Vertical multistage centrifugal pump CDLF-10 | 2.2 | 4 | 81 | 2900 | |||||
| Horizontal multistage centrifugal pump 32-160/22 | 380 | 50 | 2.2 | 24 | 31 | 4.69 | 7 | 50*32 | 2900 |
FAQs
1.What is the lifespan of a centrifugal pump?
With proper maintenance, a centrifugal pump can last 10–20 years, depending on usage, fluid type, and operating conditions.
2.Why is my centrifugal pump losing pressure?
Possible reasons:
Worn impeller or casing
Air leakage in the suction line
Clogged strainer or pipe
Incorrect motor speed (VFD issues)
3.How can I prevent pump cavitation?
Ensure proper NPSH (increase suction pressure if needed).
Keep the suction line short and free of restrictions.
Avoid running the pump at excessively high speeds.
Use a booster pump if necessary.
