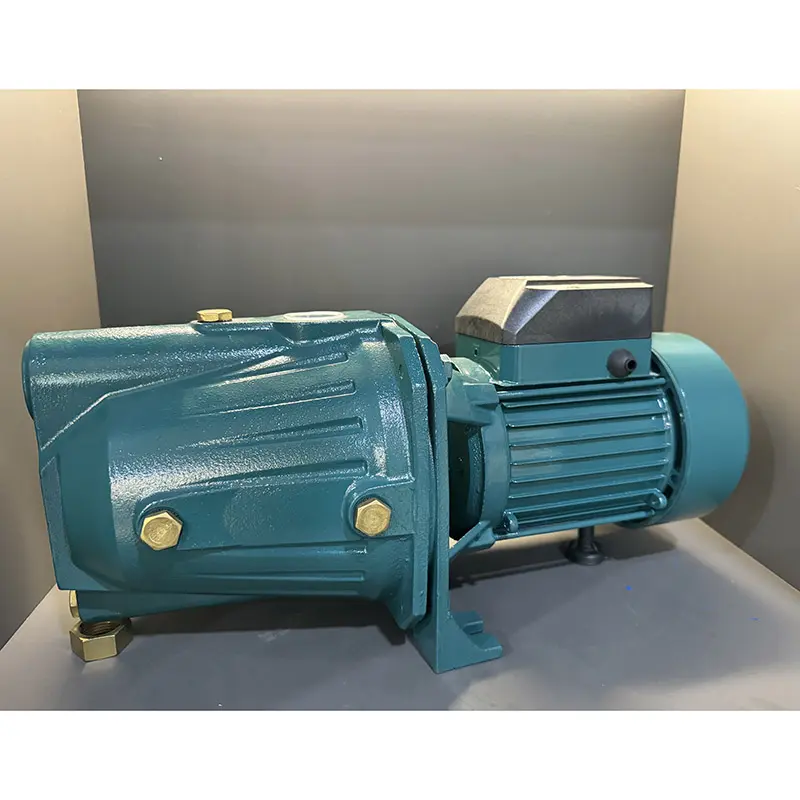

0.75KW Self-priming Booster Jet Pumps Single-Stage Booster Pump for Clean Water Efficient Irrigation
Product description
This advanced self-priming jet pump is engineered to deliver reliable water transfer for domestic and light commercial applications, featuring exceptional air-handling capabilities that ensure continuous operation even with minor air entrapment. Designed for clean water and chemically neutral liquids, the pump's robust construction resists corrosion while maintaining optimal hydraulic performance.
Key Technical Advantages
Enhanced self-priming technology achieves 6m suction lift within 45 seconds, with automatic air expulsion during operation
Dual-stage impeller system combines centrifugal and jet pump principles for superior pressure generation (up to 4 bar)
Integrated check valve with stainless steel spring maintains prime during intermittent operation
Thermally optimized motor includes automatic cut-off protection against dry running and overheating
Vibration-dampened construction reduces operational noise to <58dB for residential compatibility
Optimal Application Scenarios
Whole-house water pressure boosting systems
Agricultural irrigation and garden watering networks
Vacation home water supply solutions
Medium-sized pressure tank integration
Water transfer and circulation in residential complexes
Premium Material Specifications
Hydraulic Components: Bronze impeller, chromium-plated shaft, and reinforced composite volute

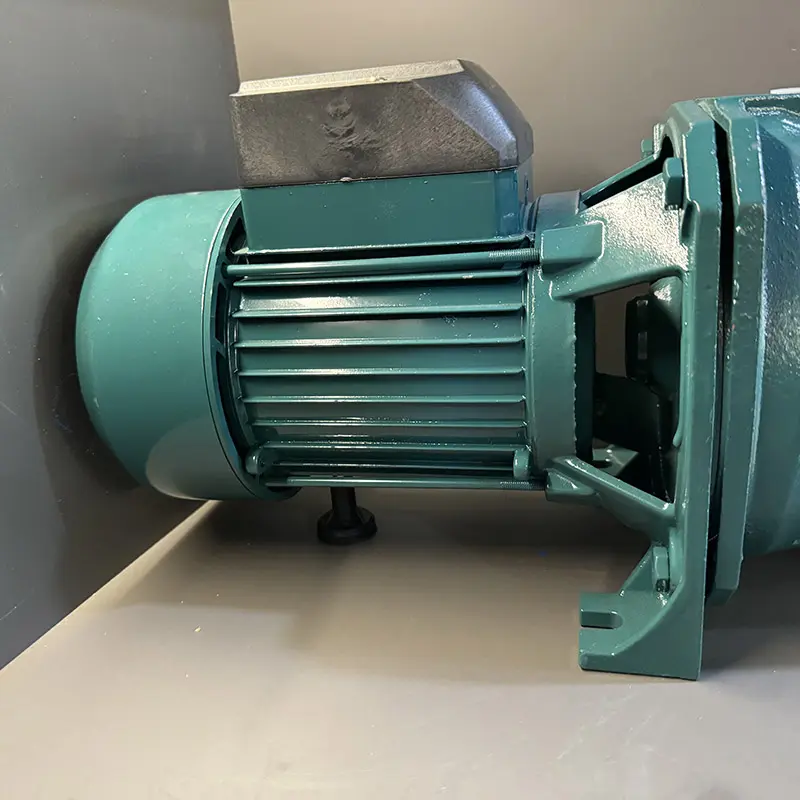

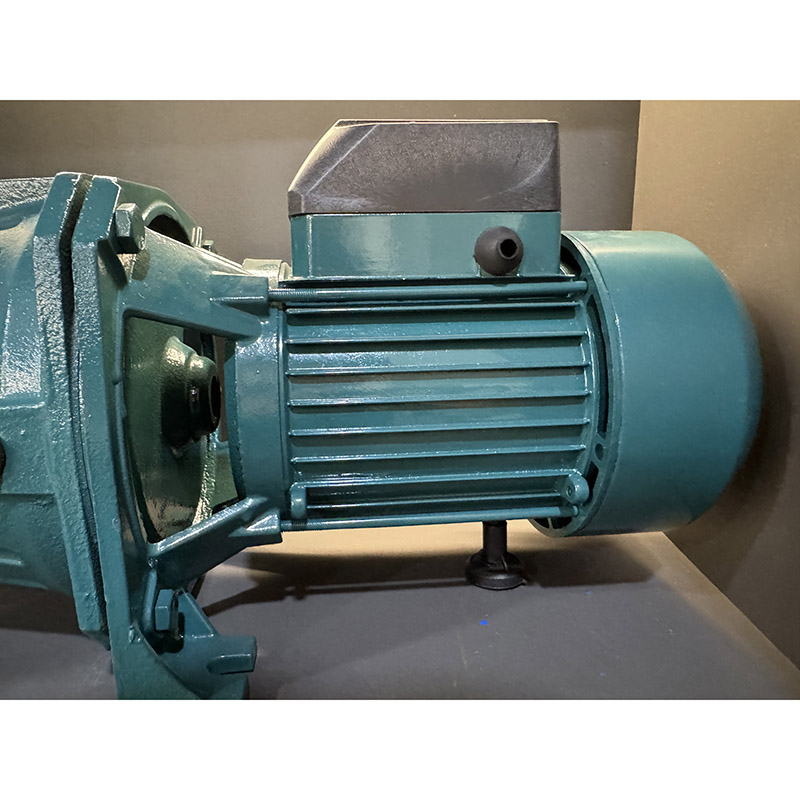

Motor Housing: Powder-coated aluminum alloy with cooling fins for heat dissipation
Sealing System: Double mechanical seals with silicon carbide faces
Connection Standards: 1" NPT female threads with optional adapter kits
Installation & Operational Guidelines
The unit requires installation in a clean, dry environment with ambient temperatures between 5°C-40°C. For semi-outdoor applications, a protective enclosure must shield the pump from direct precipitation and sunlight. The compact footprint (320×220×280mm) allows flexible mounting on vibration-isolation pads, while the top-mounted control panel simplifies operation monitoring.
Maintenance & Service Features
Quick-clean impeller chamber accessible without full disassembly
Visual prime indicator for immediate status verification
Lubrication-free bearings with 10,000-hour service life
Corrosion-resistant fasteners suitable for humid environments
Performance Characteristics:
Flow Range: 30-80 liters/minute
Maximum Head: 32 meters
Liquid Temperature Limit: 45°C continuous operation
Power Options: 0.5HP-1.5HP single-phase motors
This pump system combines professional-grade performance with homeowner-friendly operation, featuring intelligent priming logic that automatically purges air pockets during startup. The hydrodynamic design minimizes energy consumption while delivering consistent pressure for simultaneous multi-tap usage.
Important: Not rated for saltwater, chemical solutions, or liquids containing suspended abrasives. Requires annual inspection of seals and electrical components for optimal performance longevity.
Application
Motor
Operating conditions
ComponentConstruction
Specification
| Model number | Voltage(V) | Frequency（HZ） | Rated power(KW) | Rated flow(m3/h) | Rated head(m) | Caliber | Rotational speed(r/min) | ||
| JET100P | 220 | 50 | 0.75 | 3 | 40 | 4 | 9 | 25 | 2850 |
| JET-750S | 220 | 50 | 0.75 | 3 | 40 | 4 | 9 | 25 | 2850 |
