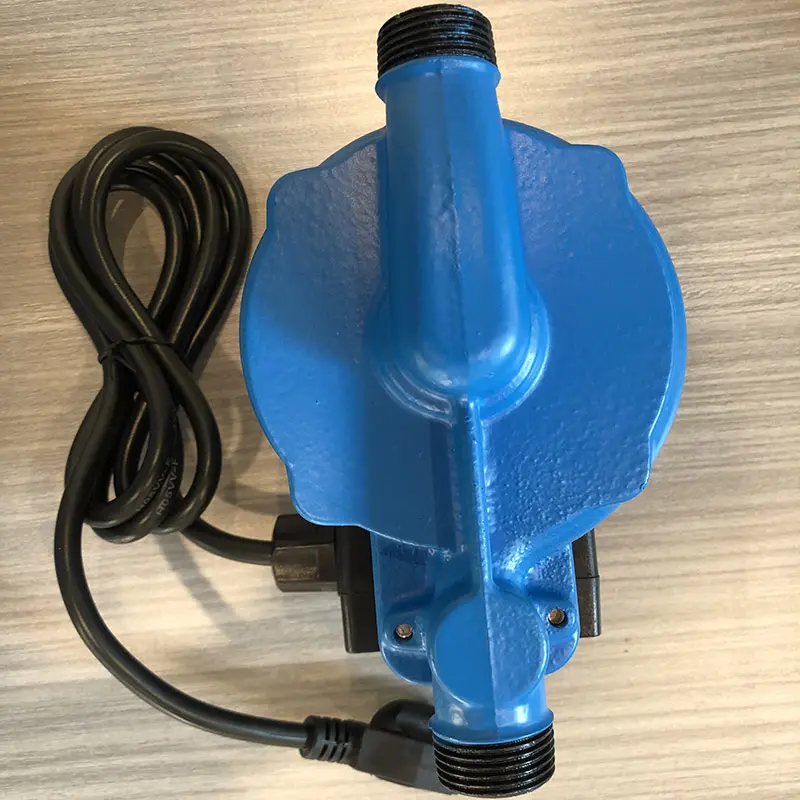

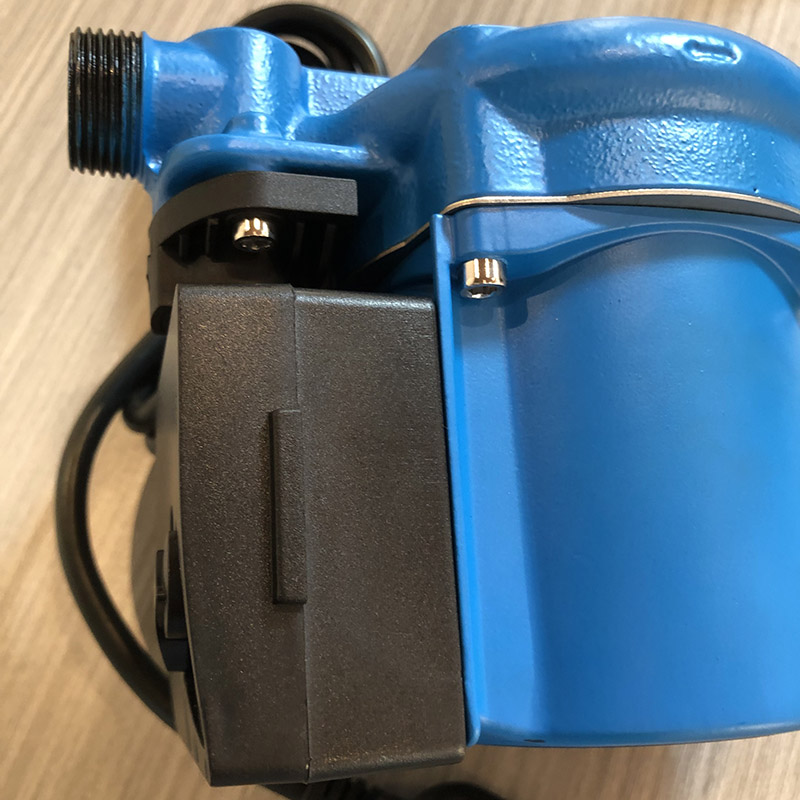

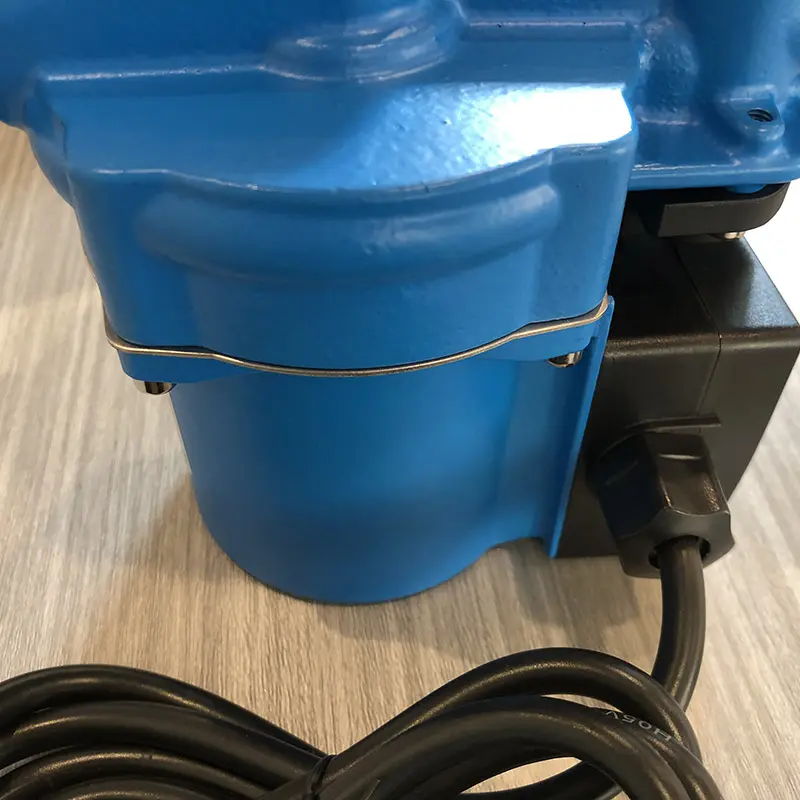

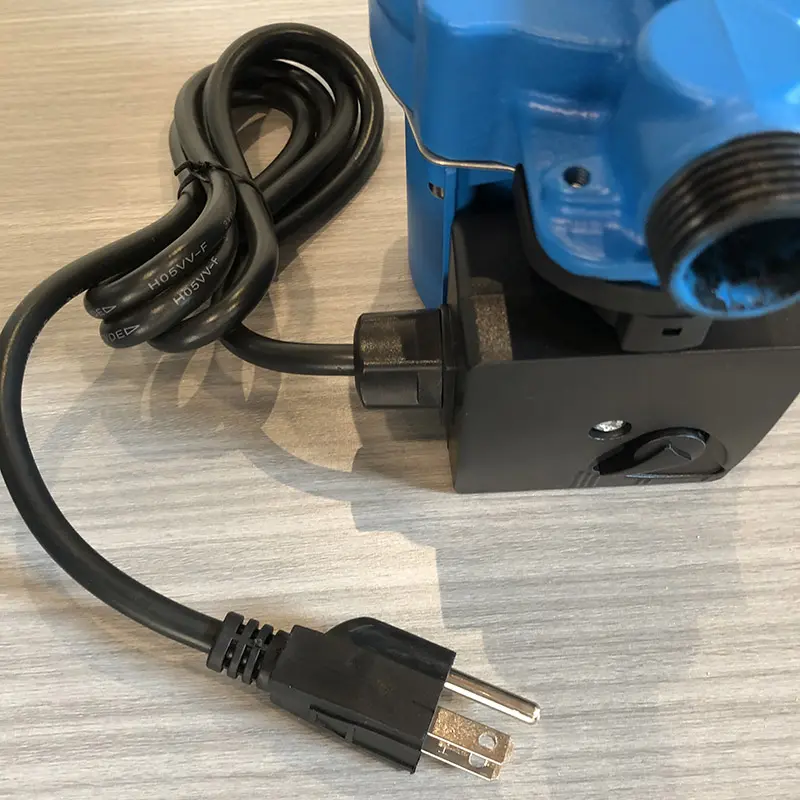

127V 60hz energy-saving Intelligent Circulating Pump Shield Pumps Lift 8m

Equipped with a permanent magnet motor and intelligent control, this energy-saving pump slashes power consumption by 40%-70% compared to standard pumps.

Product Features

Equipped with a permanent magnet motor and intelligent control, this energy-saving pump slashes power consumption by 40%-70% compared to standard pumps.

• Leak-proof shielded motor design

• Condensation-resistant encapsulated motors

• Long-life ceramic shaft/bearing system

• Wide voltage compatibility (160-260V)

• Multi-mode intelligent control:

Power/Voltage/Efficiency/Adaptive/Night modes

• Comprehensive safety protections:

• Dry-run/Locked-rotor/Voltage/Overload

Application Occasions

The energy-saving circulating pump is specifically designed for water heating systems.The energy-saving circulating pump can be installed circulation in underfloor heating and in:

·Gas wall mounted furnace ·underfloor heating system ·Single pipeline system

·Electric wall mounted furnace ·Energy saving furnace ·Dual pipeline system

·Solar energy ·Central air withering ·Shampoo room,sauna center

·Air energy ·Hotels and Resorts ·Industrial equipment

Usage Conditions

·Medium temperature: 2-110 ℃,

·Environmental temperature ≤50 ℃

·Maximum system pressure ≤10 bar,

·Input voltage: 160-260V

·Media conditions: clean,free of solid matter, fiber free Non viscous, non mineral oil, approximately neutral, non corrosive Non flammable and explosive liquids.To transport acidic and alkaline liquids You should first consult the manufacturer to choose the appropriate material.

Model Description

Dimensional Drawing

3D structure diagram

Specification

Model number	Voltage (V)	Frequency (HZ)		Rated power (W)	Rated current (A)	Maximum lift (m)	Maximum flow (m3/h)
Model number	Voltage (V)	Frequency (HZ)		Rated power (W)	Rated current (A)	Maximum lift (m)	Maximum flow (m3/h)
1503	127	60				8	1.5
RS25/8	220-240	50	Gear position
			1	135	0.60
			2	190	0.85
			3	225	1.00

RS15/6	230	50	Gear position
			1	43	0.2	3.5	1.2
			2	65	0.3	5.6	2.0
			3	92	0.4	6.5	3.1
RS25/6	230	50	Gear position
			1	46		4
			2	67		5
			3	93		6
RS20/12	220	50	Gear position
			1	150	0.70	9	1.8
			2	200	0.90	11.8	2.5
			3	245	1.06	12.5	4.3

FAQs

1. How to choose the right circulation pump?
Consider:
Flow rate requirements (GPM/LPM)
System pressure (head)
Liquid temperature
Material compatibility (bronze, stainless steel, etc.)
2. Where are circulation pumps used?
HVAC Systems: Heating/cooling water circulation
Domestic Hot Water: Recirculation systems
Industrial Processes: Cooling towers, boiler systems
Solar Thermal: Fluid circulation in solar panels
Aquariums/Pools: Water filtration systems
Energy efficiency (look for ECM motors)
3.What are the main types of circulation pumps?
• Inline circulators - Compact design for HVAC systems
• Wet rotor pumps - Quiet operation, common in hydronic heating
• Magnetic drive pumps - Sealless design for chemical applications
• Variable speed circulators - Energy-saving smart pumps
