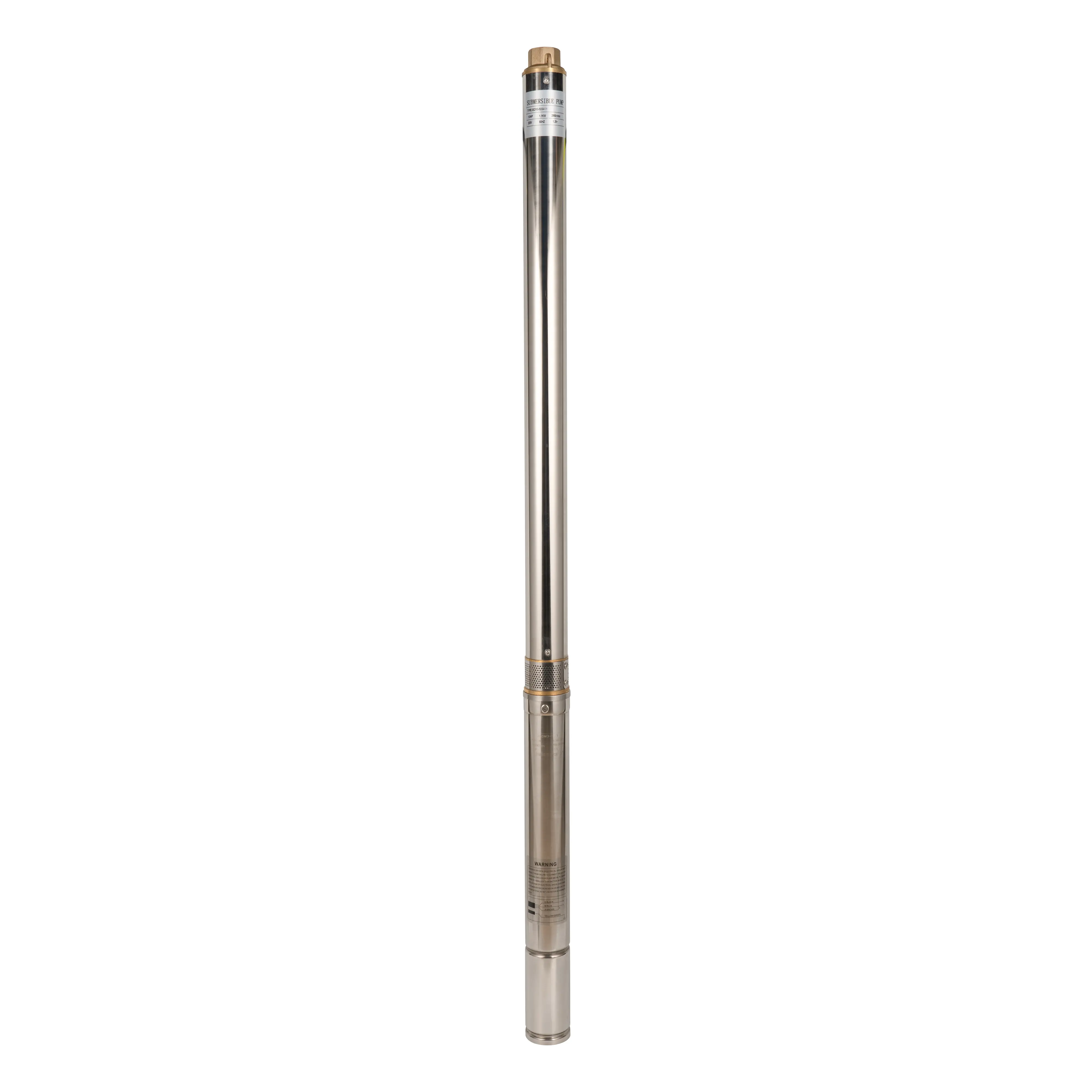

4SDM 0.55KW Deep Well Water Pump Single Phase 220V 50HZ 4inch foe Garden and Irrigation

1.For water supply from wells or reservoirs.
2.For domestic use,for civil andindustrial applications.
3. For garden use and irrigation.

Product description

Designed for demanding hydrological applications, this submersible pumping system combines exceptional 80m immersion depth capability with 0.25% suspended solids tolerance. It serves potable water delivery, landscape irrigation networks, and industrial fluid transfer operations with equal proficiency. The thermal management system guarantees stable operation in +35°C liquid environments while maintaining compatibility with narrow 4" diameter wells. Motor options include serviceable rewinding models and maintenance-free encapsulated designs, powered by either three-phase 380-415V or single-phase 220-240V/50Hz supplies. Integrated control solutions range from basic magnetic starters to intelligent digital controllers with automatic fault diagnostics. Manufactured with reinforced structural casings, the pumps support optional configurations including chemical-resistant mechanical seals and alternative electrical specifications (60Hz/other voltages) for specialized installations. Particular attention has been given to hydraulic efficiency optimization for sustainable garden watering and agricultural water management applications.

4SD2

Application

1.For water supply from wells or reservoirs.

2.For domestic use,for civil andindustrial applications.

3. For garden use and irrigation.

Operating conditions

1.Maximum fluid temperatureup to +35℃

2.Maximum immersion:80m

3.Maximum sand content:0.25%

4.Minimum well diameter:4"。

Motor and Pump

1.Rewindable motoror Full obturatedscreen motor Three-phase:380V-415V/50Hz

Single-phase:220V-240V/50Hz

2.Equip with start control boxor digital auto-control box Pumps are designed by casing stressed

Options on request

1.Special mechanical seal

2.Other voltages or frequency 60 Hz

Specification

Model number	Voltage(V)	Frequency（HZ）	Rated power(KW)	Rated flow(m3/h)	Rated head(m)	Caliber	Rotational speed(r/min)
Model number	Voltage(V)	Frequency（HZ）	Rated power(KW)	Rated flow(m3/h)	Rated head(m)	Caliber	Rotational speed(r/min)
3SDM3-54/16-0.75	220	50	0.75	3	54	3寸	2850
3SDM3-82/24-1.1	220	50	1.1	3	82	3寸	2850
3SDM3-64/15-0.37	220	50	0.37	3	64	3寸	2850
3.5SDM2-52/11-0.37	220	50	0.37	2	52	3.5寸	2850
4SDM2-66/12-0.55	220	50	0.55	2	66	4寸	2850
4SDM2-77/14-0.75	220	50	0.75	2	77	4寸	2850
4SDM2-105/19-1.1	220	50	1.1	2	105	4寸	2850

FAQs

1.Q:Are you a manufacturer?
We are a manufacturer integrating industry and trade.With 20+ years of manufacturing experience, our Taizhou-based factory produces pumps for global clients, ensuring competitive lead times.
2.Q : What's the payment term?
A: We accept LC, T/T, PayPal, D/P, Western Union

3.Q: Can you recommend pumps for my specific project?
A: Yes, share your requirements (flow, head, medium), and we’ll suggest models.
