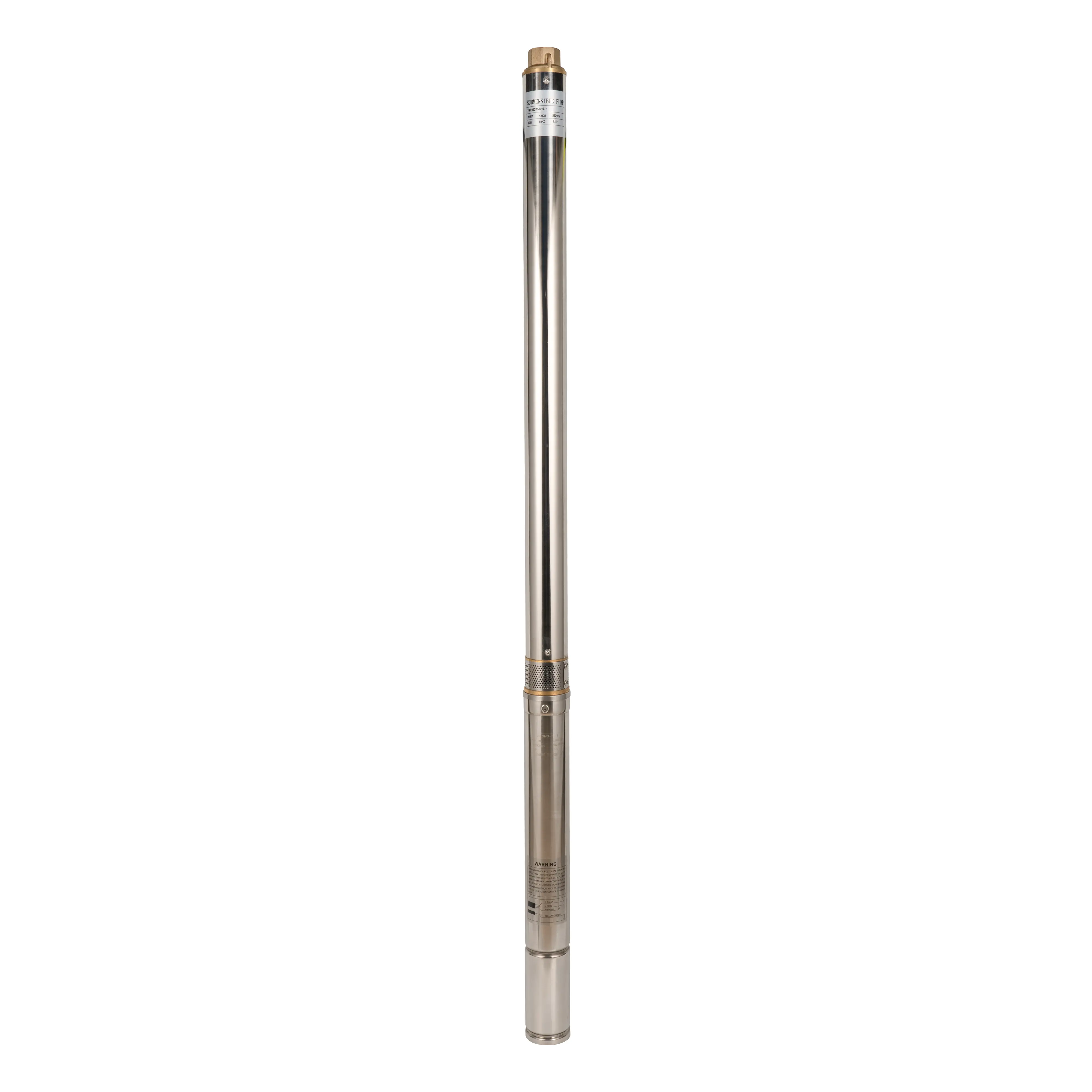

4SDM 0.75KW High Quality Deep Well Pump Submersoble Water Pump Irrigation and Aguriculture
4SD2
Application
1.For water supply from wells or reservoirs.
2.For domestic use,for civil andindustrial applications.
3. For garden use and irrigation.
Operating conditions
1.Maximum fluid temperatureup to +35℃
2.Maximum immersion:80m
3.Maximum sand content:0.25%
4.Minimum well diameter:4"。
Motor and Pump
1.Rewindable motoror Full obturatedscreen motor Three-phase:380V-415V/50Hz
Single-phase:220V-240V/50Hz
2.Equip with start control boxor digital auto-control box Pumps are designed by casing stressed
Options on request
1.Special mechanical seal
2.Other voltages or frequency 60 Hz
Specification
| Model number | Voltage(V) | Frequency（HZ） | Rated power(KW) | Rated flow(m3/h) | Rated head(m) | Caliber | Rotational speed(r/min) |
| 3SDM3-54/16-0.75 | 220 | 50 | 0.75 | 3 | 54 | 3寸 | 2850 |
| 3SDM3-82/24-1.1 | 220 | 50 | 1.1 | 3 | 82 | 3寸 | 2850 |
| 3SDM3-64/15-0.37 | 220 | 50 | 0.37 | 3 | 64 | 3寸 | 2850 |
| 3.5SDM2-52/11-0.37 | 220 | 50 | 0.37 | 2 | 52 | 3.5寸 | 2850 |
| 4SDM2-66/12-0.55 | 220 | 50 | 0.55 | 2 | 66 | 4寸 | 2850 |
| 4SDM2-77/14-0.75 | 220 | 50 | 0.75 | 2 | 77 | 4寸 | 2850 |
| 4SDM2-105/19-1.1 | 220 | 50 | 1.1 | 2 | 105 | 4寸 | 2850 |
FAQs
1.Q:Are you a manufactory or trading company?
A:We are an industry and trade company.We’re not just a manufacturer—we’re your technical partner, offering both standard and custom pump solutions from our own facility.
2.Q:How about your service?
A:we have Pre-sale service, In-sale service,and After-sale service,what we pursue is long-time cooperation, so our principle is customer first.
3.Q: Are your pumps REACH or RoHS compliant?
A: Yes, all materials meet EU environmental regulations.
