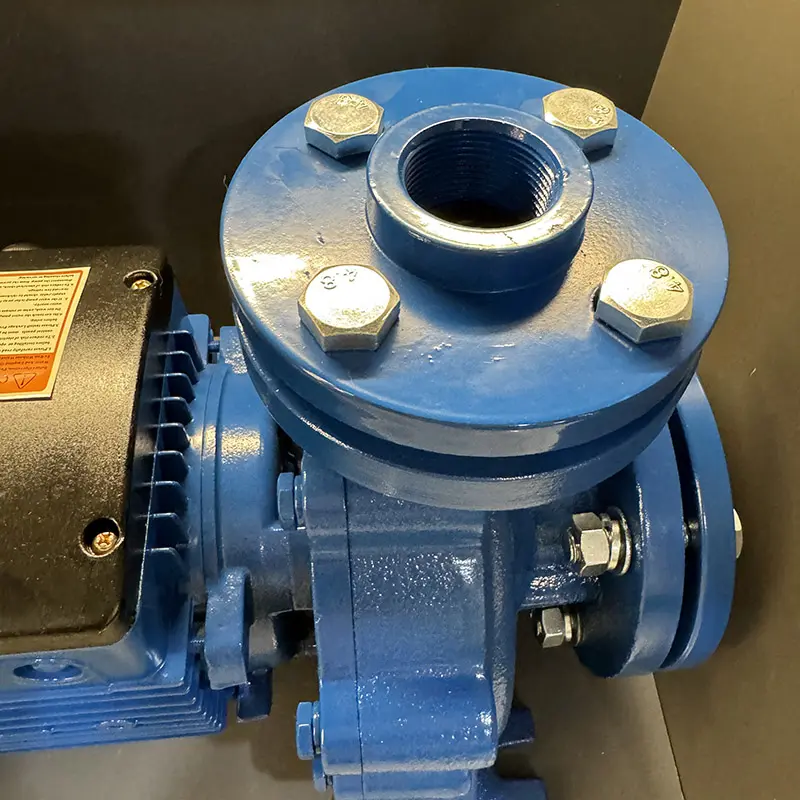

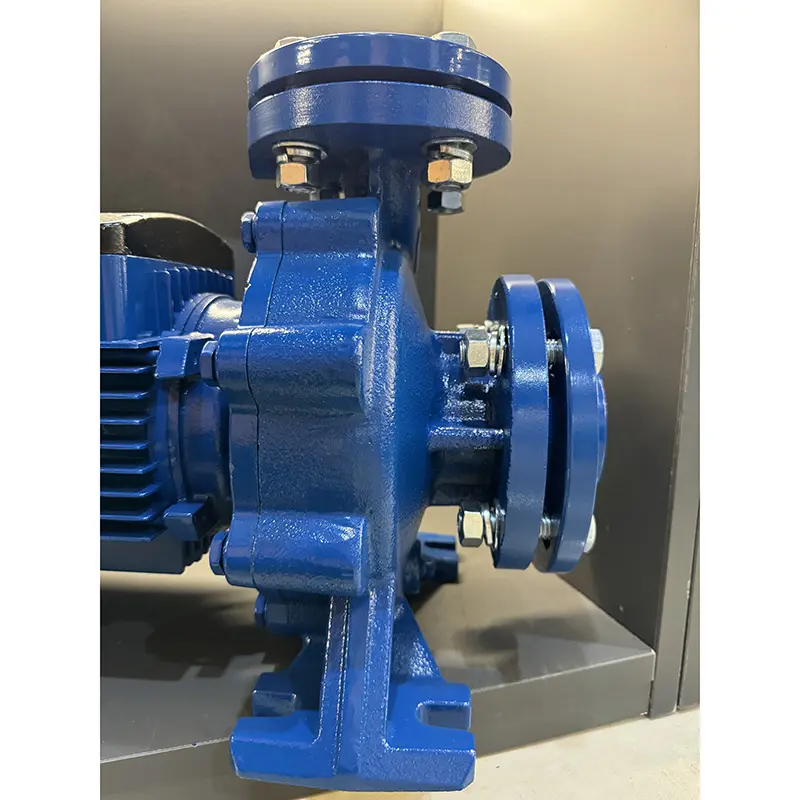

Horizontal multistage centrifugal pump 32-16022

CDL/ CDLF is a kind of multifunctional products.It can be used to convey various medium from tap water to industrial liquid at different temperature and with di-fferent flow rate and pressure. CDL type is applicable to conveying non-corrosive liquid, while CDLF is suitablefor slightly corrosive liquid.

Water supply: Water filter and transport in Waterworks, boosting of main pipeline, boosting in high-rise buildings.

Industrial boosting: Process flow water system, cleaning system, high-pressure washing system, fire fighting system.

Industrial liquid conveying: Cooling and air-conditioning system, boiler water supply and condensing  system,.machine-associated purpose, acids and alkali.

Water treatment: Ultrafiltration system, reverse osmosis system, istillation system, separator, swimming pool.

Irrigation: Farmland irgation, spray irrigation, dripping irrigation.

Thin, clean, non-flammable and non-explosive liquidcontaining no solid granules and fibers.

Liquid temperature:

Normal temperature type: -l5C ~+70′C,

Hot water type:-15C~+120C

Ambient temperature: up to +40C.

Altitude:up to 1000m

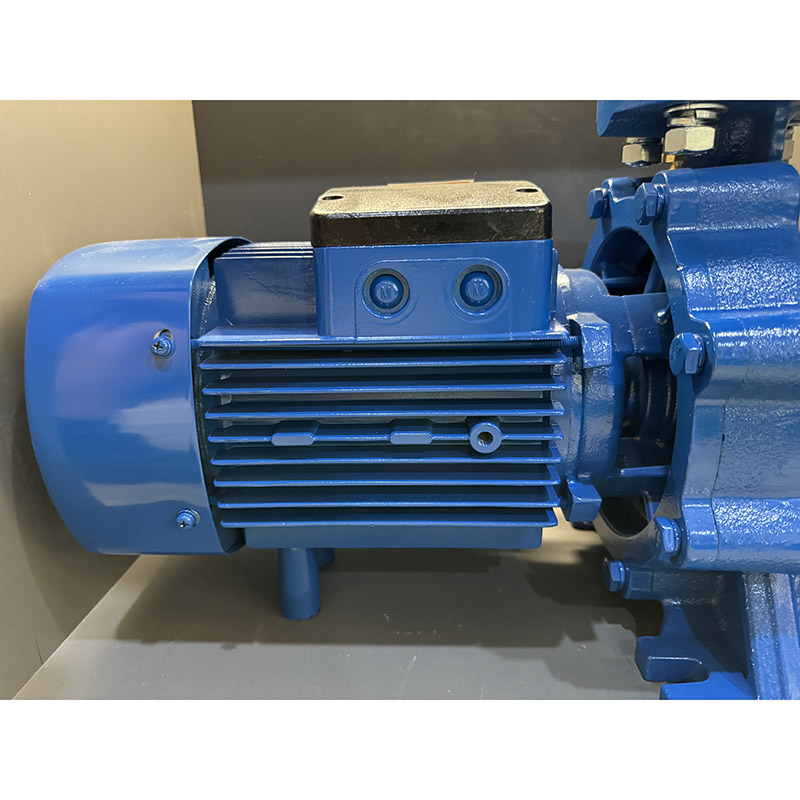

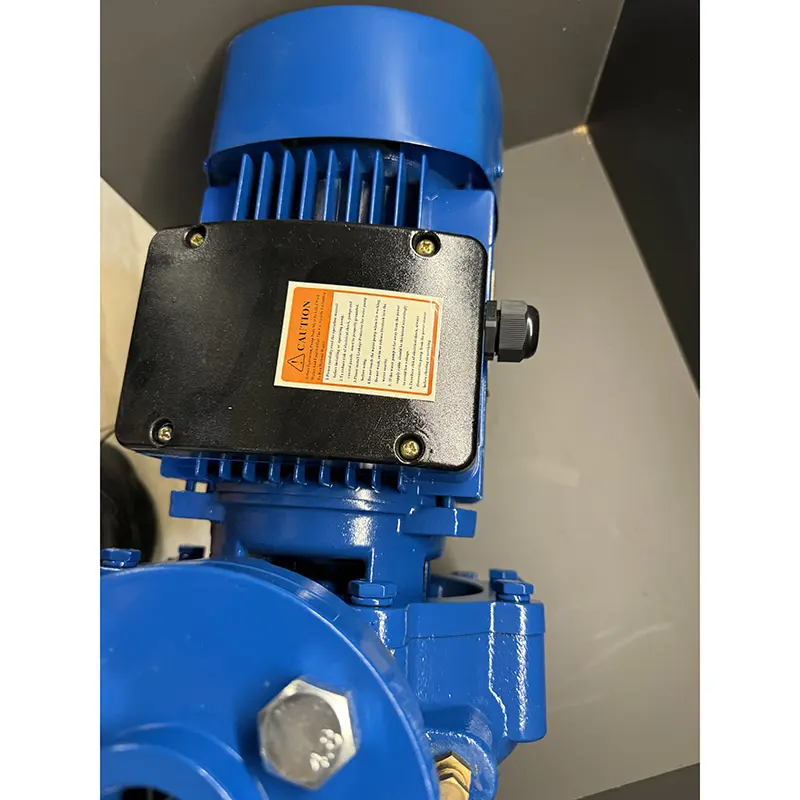

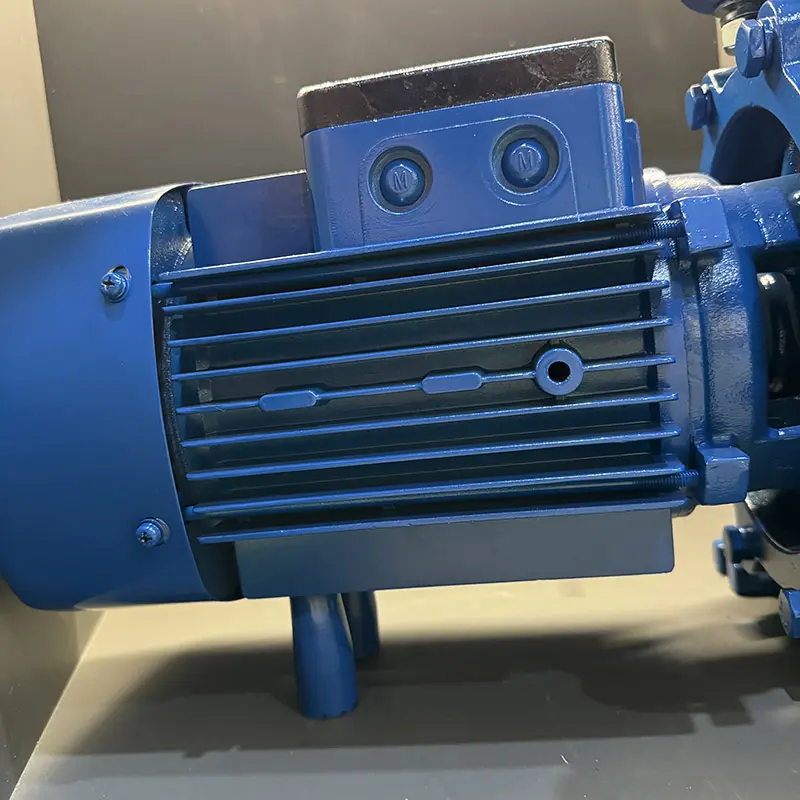

Full-enclosed air -blast two-pole standard motor

Protection class: 1P55

Insulation class: F

Standard voltage:50Hz: 1 x 220-230/ 240V

3 x 200-220/ 346-380V

3 x 220-240/ 380-415V

3 x 380-415V

Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.

As a result of their reliability and the fact that they are easy to use, these pumps are widely used in domestic and civil applications such as the distribution of water in combination with small and medium sized pressure sets, for transferring liquids and for the irrigation of gardens and allotments. The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

Motor

Operating conditions

ComponentConstruction
