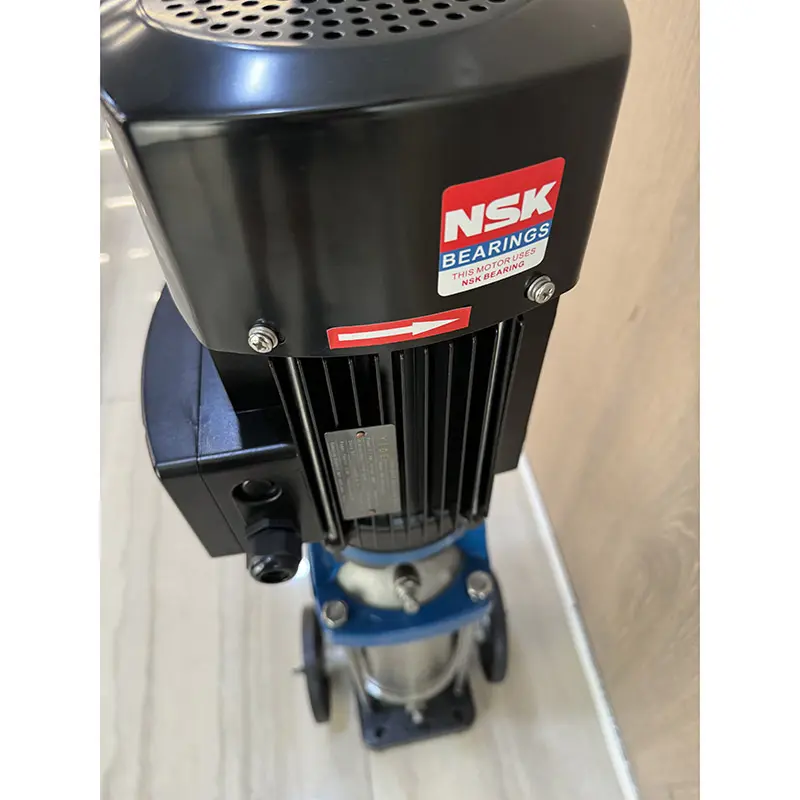

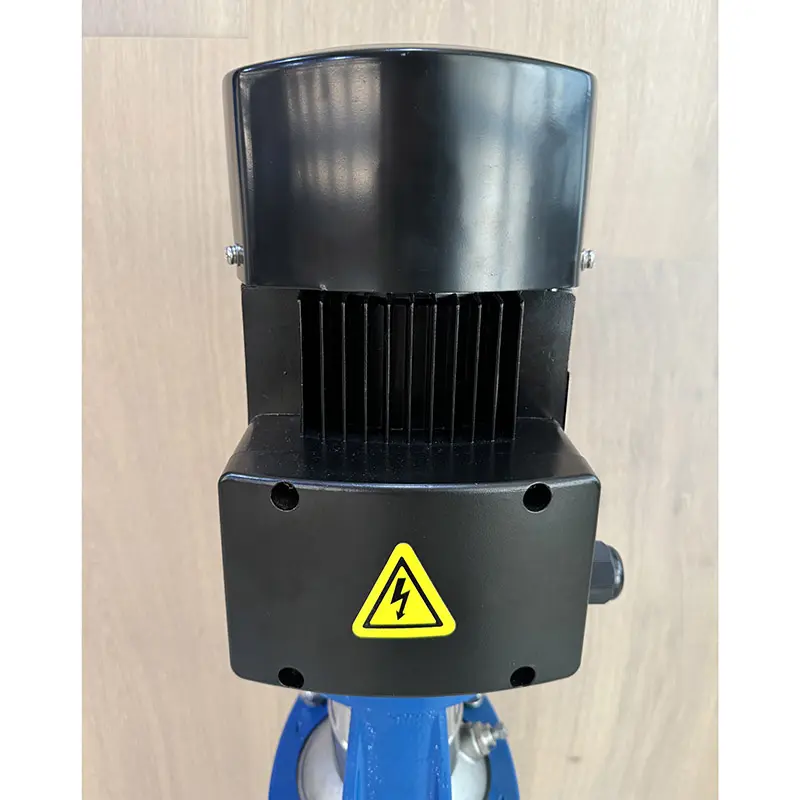

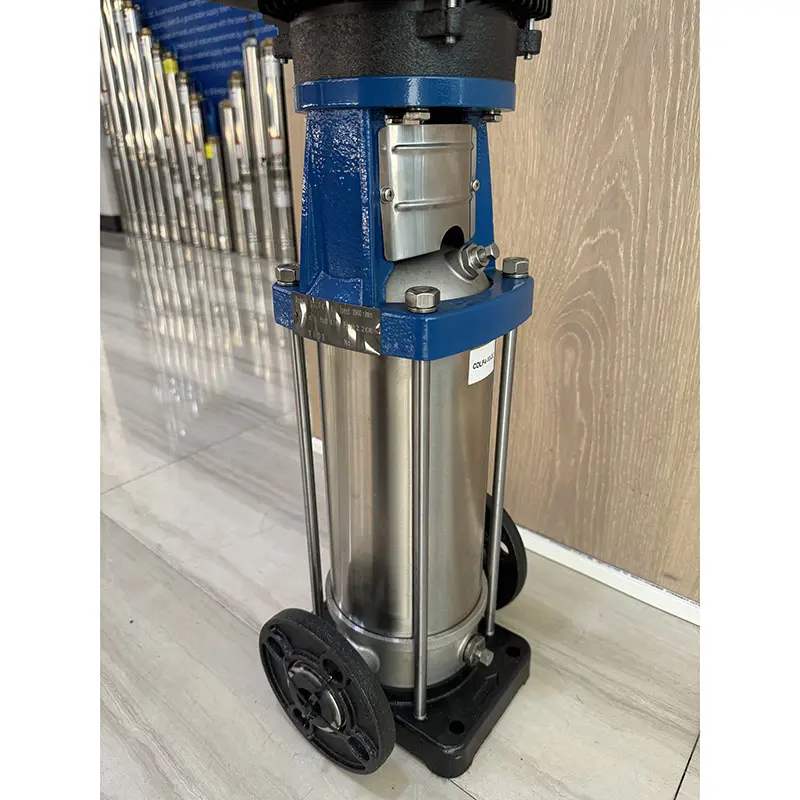

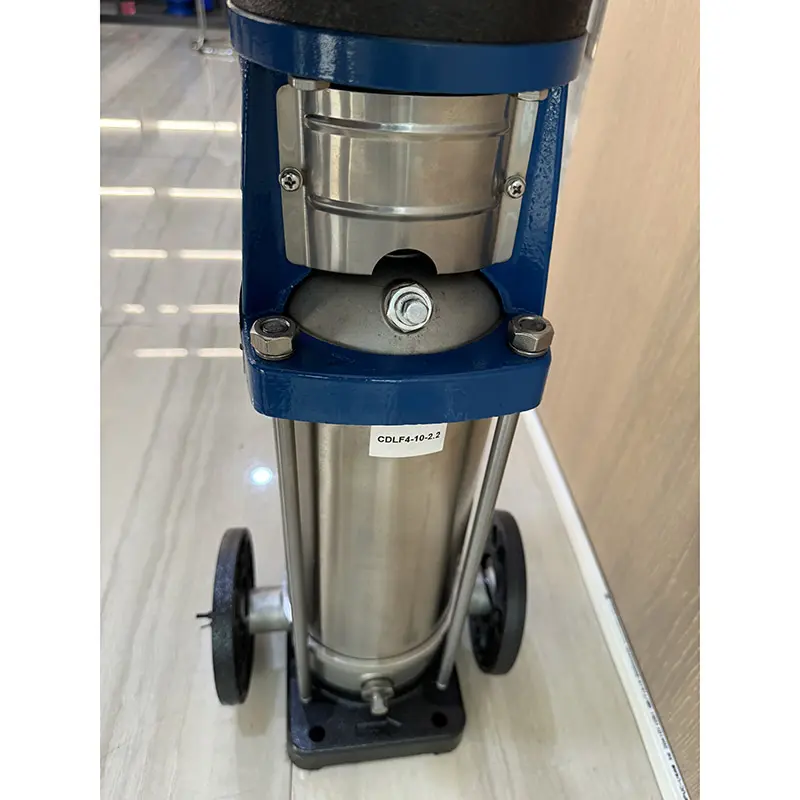

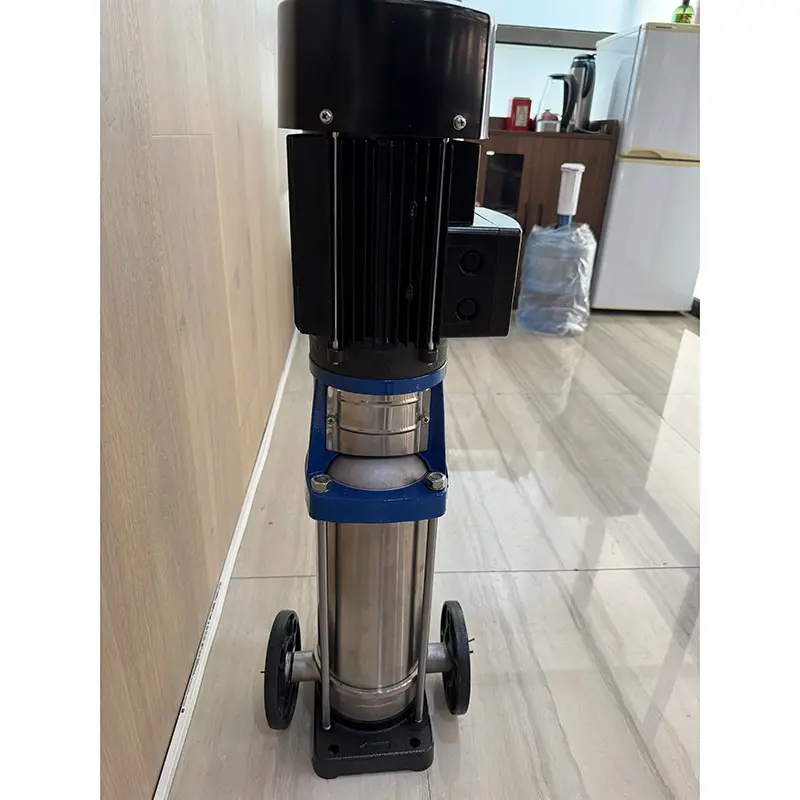

Vertical multistage centrifugal pump CDLF-10

The CDL/CDLF series is a versatile range of pumps designed to handle various liquids, from clean water to industrial fluids, across different temperatures, flow rates, and pressure conditions. The CDL type is suitable for non-corrosive liquids, while the CDLF model is engineered for slightly corrosive media.

Product Description

Water supply: Water filter and transport in Waterworks, boosting of main pipeline, boosting in high-rise buildings.

Industrial boosting: Process flow water system, cleaning system, high-pressure washing system, fire fighting system.

Industrial liquid conveying: Cooling and air-conditioning system, boiler water supply and condensing system,.machine-associated purpose, acids and alkali.

Water treatment: Ultrafiltration system, reverse osmosis system, istillation system, separator, swimming pool.

Irrigation: Farmland irgation, spray irrigation, dripping irrigation.

Thin, clean, non-flammable and non-explosive liquidcontaining no solid granules and fibers.

Liquid temperature:

Normal temperature type: -l5C ~+70′C,

Hot water type:-15C~+120C

Ambient temperature: up to +40C.

Altitude:up to 1000m

Full-enclosed air -blast two-pole standard motor

Protection class: 1P55

Insulation class: F

Standard voltage:50Hz: 1 x 220-230/ 240V

3 x 200-220/ 346-380V

3 x 220-240/ 380-415V

3 x 380-415V

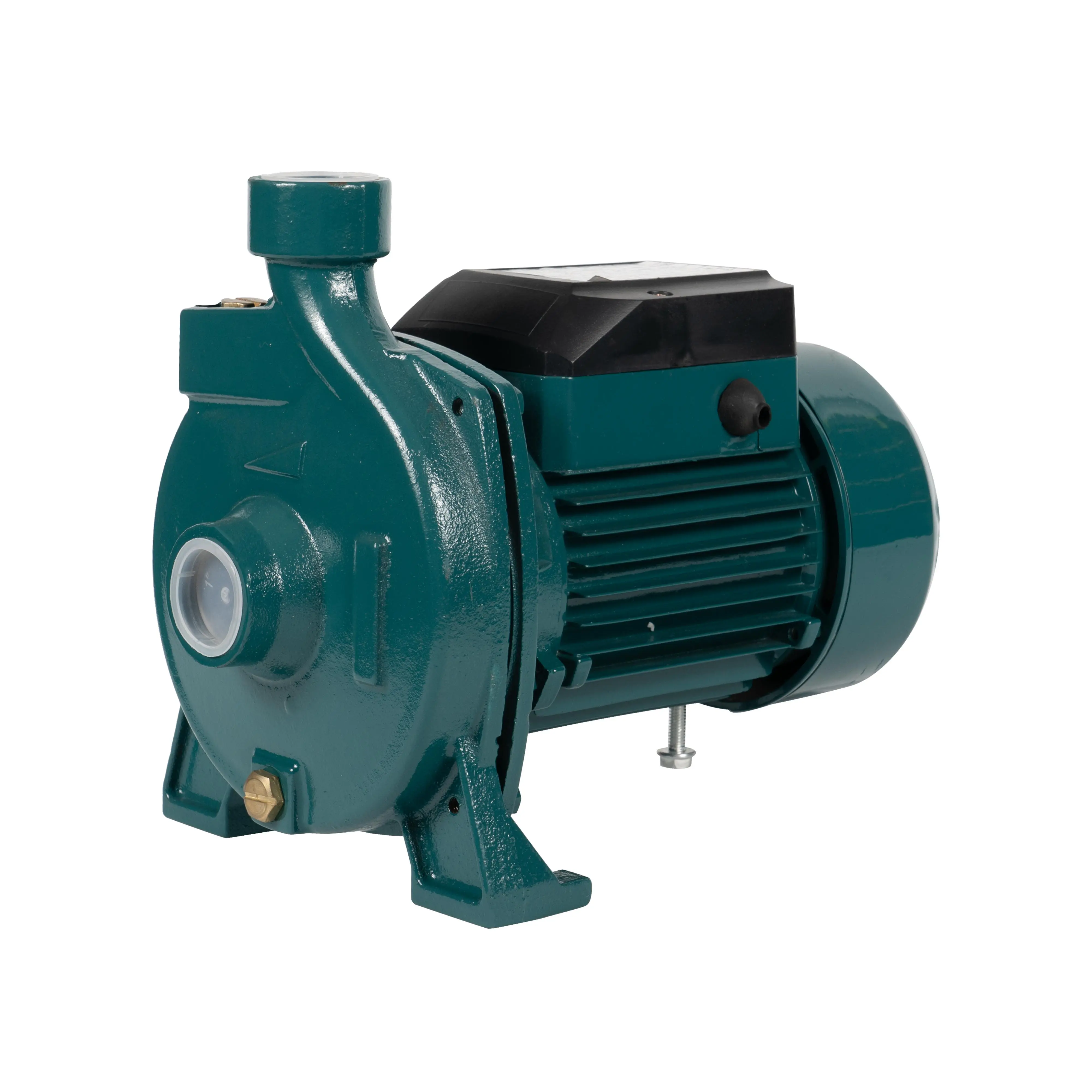

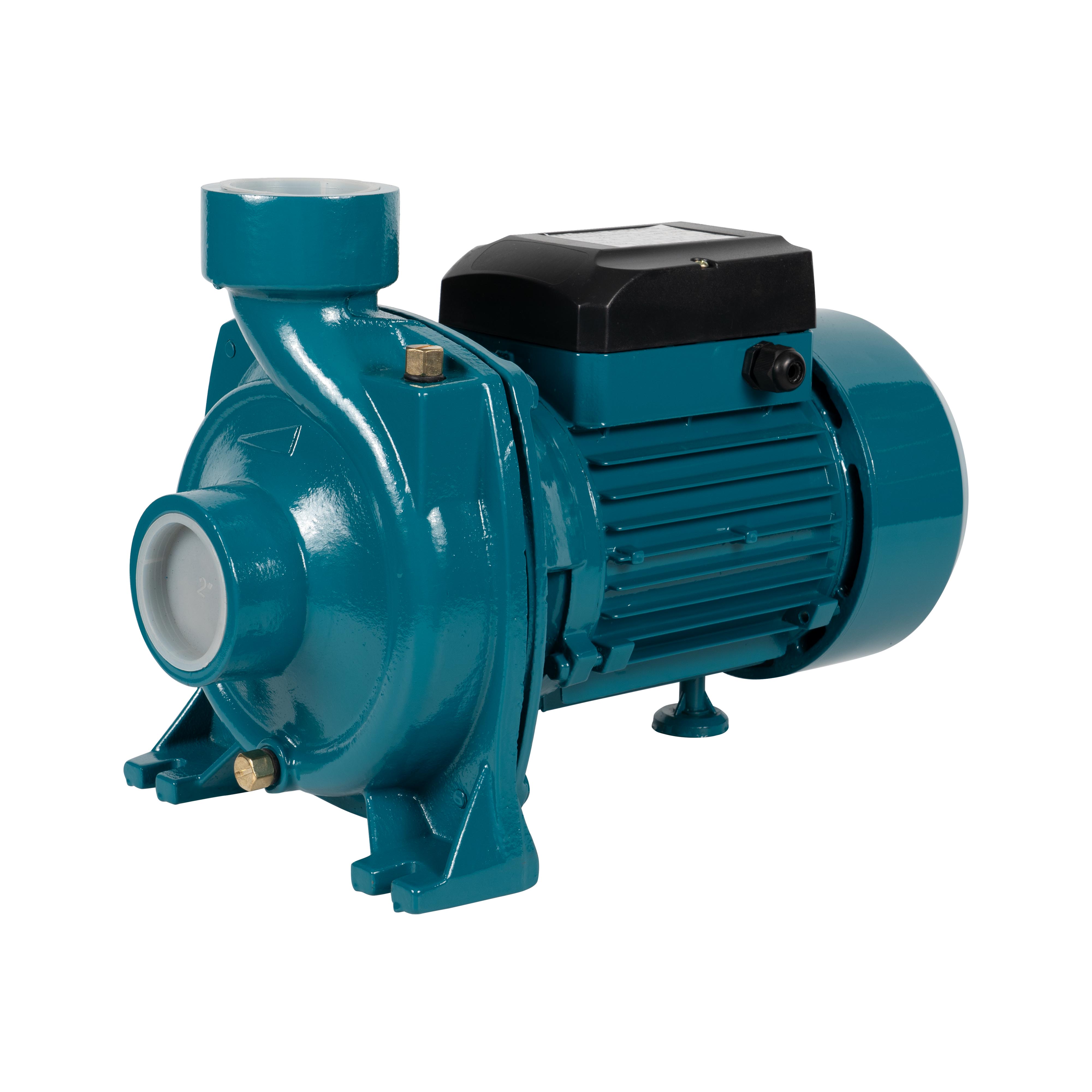

Centrifugal Pumps

Application

These pumps are designed for clean water and non-corrosive liquids compatible with the pump's construction materials. Known for their reliability and user-friendly operation, they are commonly used in residential and commercial applications including:

Water distribution in small-to-medium pressure systems

Liquid transfer operations

Garden and agricultural irrigation

Motor

※ Two-pole induction motor(n=2850 r.p.m)

※ Insulation Class B

※ Protection IP44

※ Continuous service S1

※ Thermal protector for single phase

※ Single-phase 220V/50Hz, 60Hz if request

Three-phase 380V/50Hz, 60Hz if request

Operating conditions

※ Liquid temperature up to 60℃

※ Ambient temperature up to 40℃

※ Total suction lift up to 8m

ComponentConstruction

※ Pump body:

※ Pump support:

※ Motor housing:

※ Impeller:

※ Motor shaft:

※ Mechanical seal:Cast iron

Cast iron

Aluminum

Brass

Carbon steel, AISI304 SS if request

Ceramic/Graphite (0.5HP), SIC/Graphite

Specification

Model number	Voltage(V)	Frequency（HZ）	Rated power(KW)	Maximum discharge(m3/h)	Maximum lift(m)	Rated current(A)	Maximum suction(m)	Caliber(mm)	Rotational speed(r/min)
Model number	Voltage(V)	Frequency（HZ）	Rated power(KW)	Maximum discharge(m3/h)	Maximum lift(m)	Rated current(A)	Maximum suction(m)	Caliber(mm)	Rotational speed(r/min)
CPM130	220	50	0.37	4.2	14	2	9	25	2850
CPM158	220	50	0.75	4.8	20	4	9	25	2850
CPM180	220	50	1.5	7.8	28	7	9	30*25	2850
HFM/5AM	220	50	1.5	30	18	7	9	50	2850
Vertical multistage centrifugal pump CDLF-10			2.2	4	81				2900
Horizontal multistage centrifugal pump 32-160/22	380	50	2.2	24	31	4.69	7	50*32	2900

FAQs

1. What is a multi-stage centrifugal pump?
A multi-stage centrifugal pump consists of two or more impellers arranged in series within a single casing. Each impeller (stage) increases the fluid pressure progressively, making it ideal for high-pressure applications such as boiler feed, water supply, and industrial processes.
2. What are the advantages of multi-stage pumps over single-stage pumps?
Higher pressure output – Multiple stages allow for greater pressure buildup.
Energy efficiency – More efficient than single-stage pumps for high-head applications.
Compact design – Achieves high pressure in a smaller footprint compared to single-stage alternatives.
Flexibility – Can handle clean or slightly contaminated liquids depending on design.
3. What types of liquids can multi-stage centrifugal pumps handle?
They are primarily designed for clean, low-viscosity liquids such as:
Water (potable, industrial, or hot water)
Light oils
Coolants
Chemically neutral liquids (with compatible materials)
Note: Abrasive or highly viscous fluids may require special designs.
