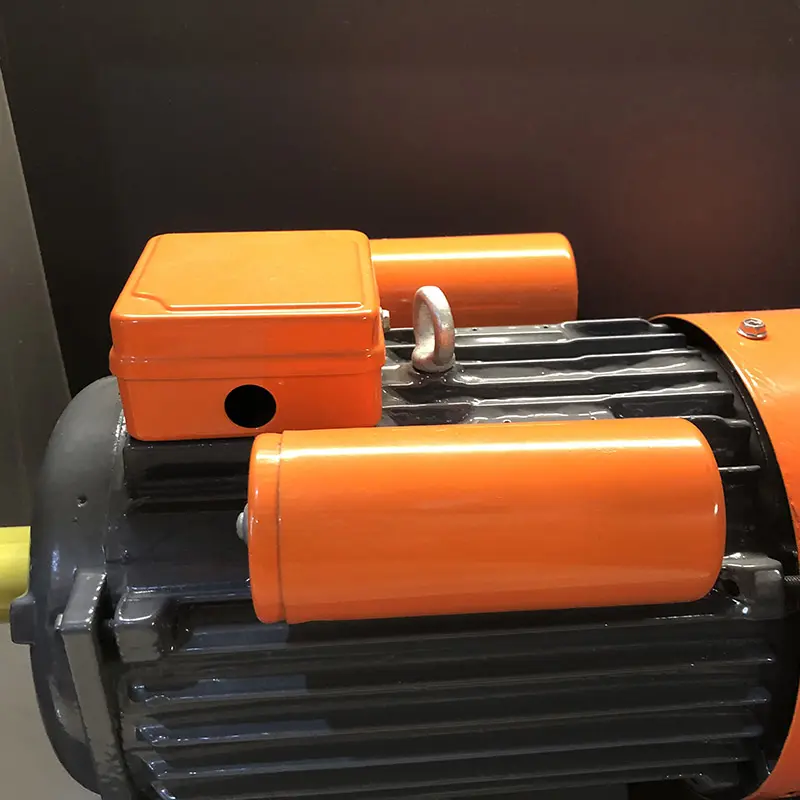

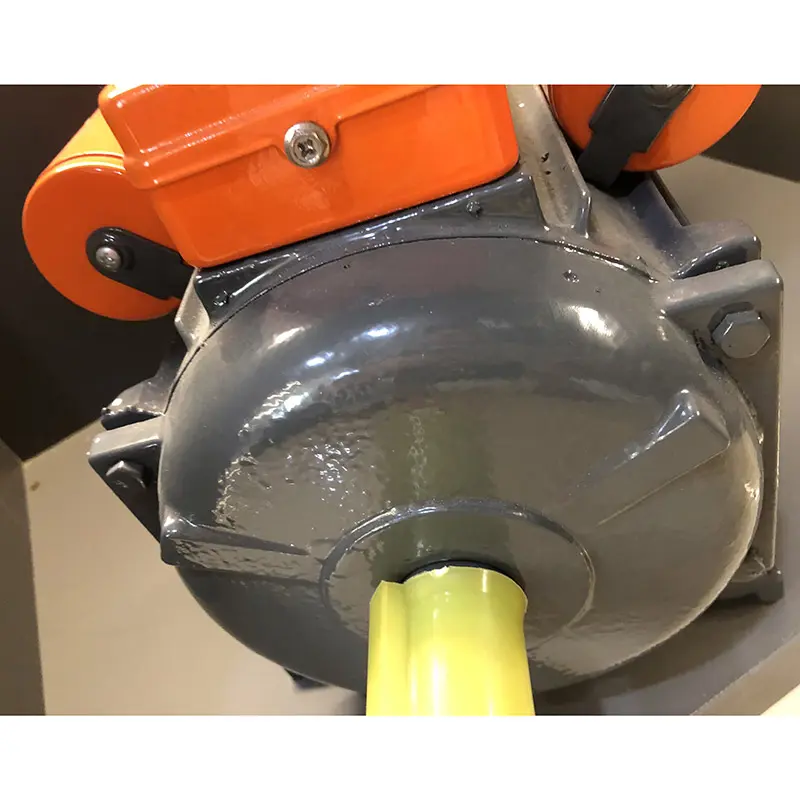

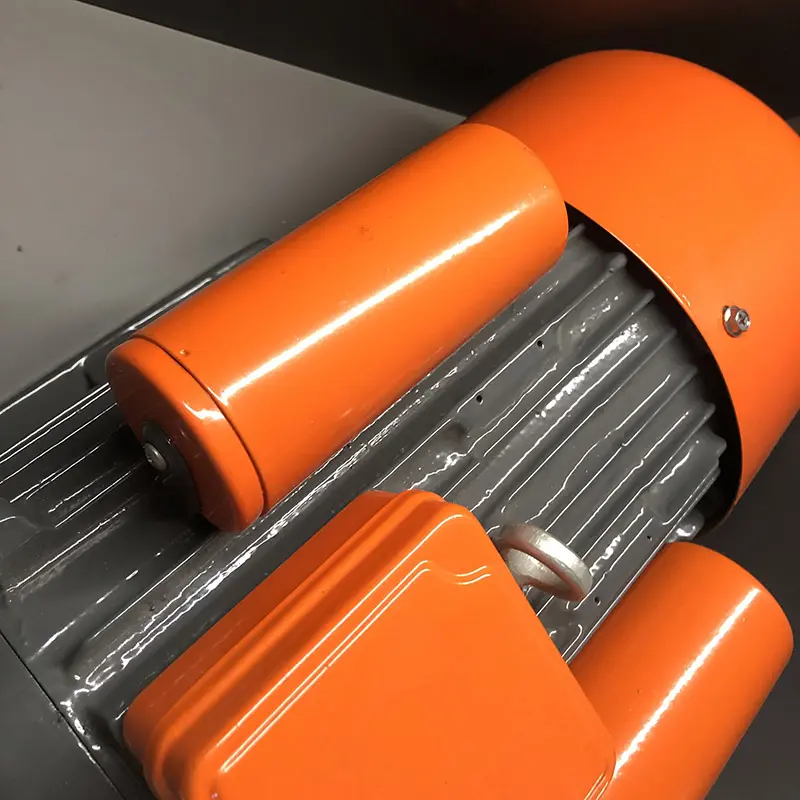

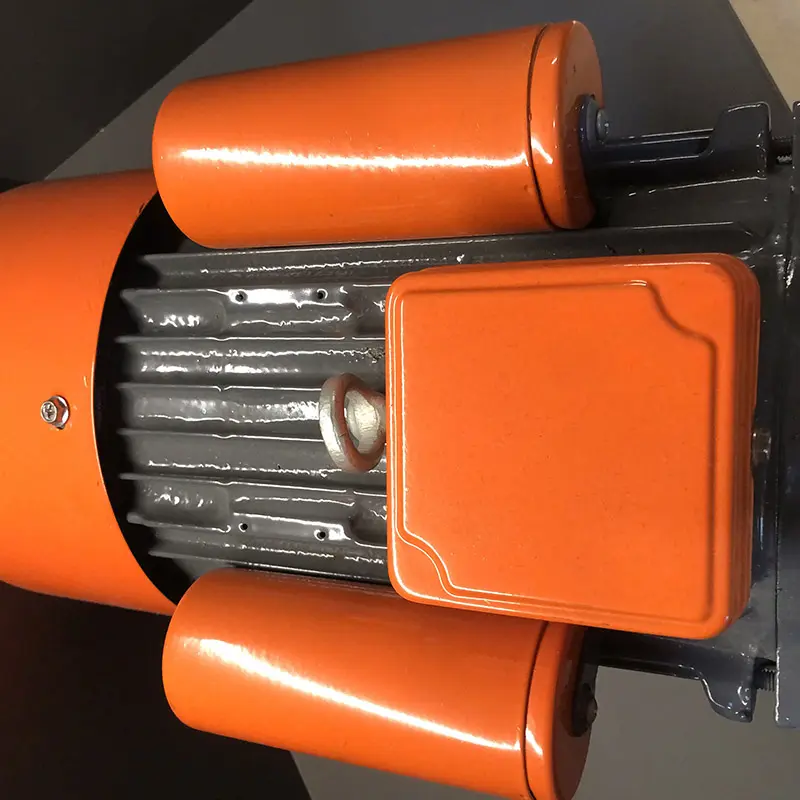

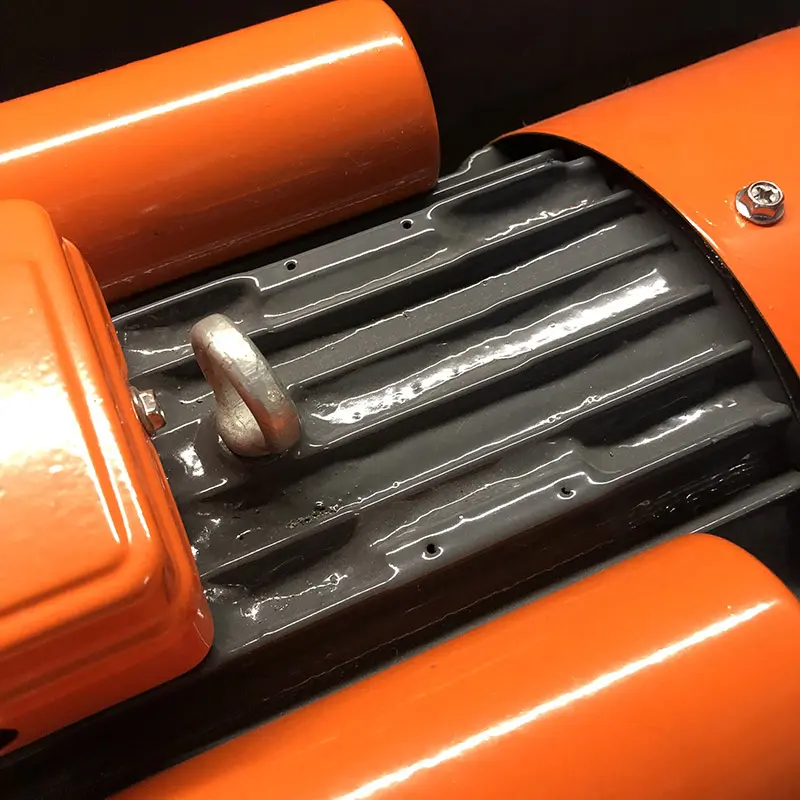

YC Series High Hardness Strong Bearing Motor With Cast Iron Housing
Single Phase Two-value Capacitor Asynchronous Motor
Product Description
Engineered for superior performance, this robust electric motor features a durable cast-iron construction with high-grade front and rear covers, delivering exceptional structural integrity and deformation resistance. The precisely engineered housing provides outstanding load-bearing capacity, making it ideal for heavy industrial operations. Its innovative external centrifugal switch design significantly enhances internal space utilization, allowing for taller stator and rotor configurations that deliver powerful starting torque and remarkably stable running performance. The YC/YCL series motor is specifically designed to handle the rigorous demands of single-phase, high-inertia equipment including rock crushers, material handling cranes, and industrial concrete mixers. With its vibration-resistant construction and optimized electromagnetic design, this motor ensures reliable operation even under continuous heavy loading conditions, making it the preferred choice for tough industrial environments.
Operating conditions
Specification
| Model number | Voltage(V) | Frequency（HZ） | Rated power(KW) | Rated current(A) | Rotational speed(r/min) |
| YC90S-4 | 220 | 50 | 0.55 | 4 | 1400 |
| YE3-80M1-2 | 380 | 50 | 0.55 | 1.77 | 2800 |
| YE3-80M2-4 | 380 | 50 | 0.75 | 2.05 | 1400 |
